• COMPACT Counterweight Boom Barrier
• Counterweight incorporated into barrier arm.
• New oblong profile barrier arm.
• Easier locking features.
• All steelwork Galvanised & Powder coated.
• Surface or sub-surface fixing options
Specifications:
Pivot Post
• Dims: 220 x100 x 1,000mmH

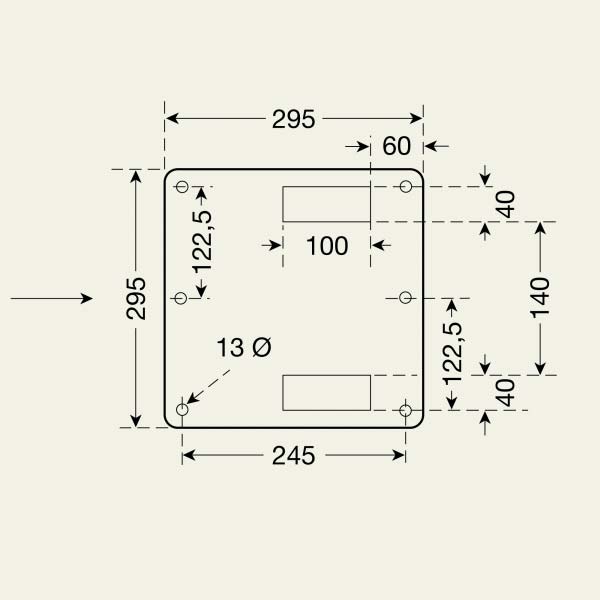

• Base plate: 295 x 295 10mmD
• Material: Steel
• Finish: Galvanised & Powder coated
• Colour: Red
Barrier Arm
• Material: Aluminium
• Section: 90 x 60mm
• Colour: White
• Stripes: Red reflective
• Max. Length: 7,000mm

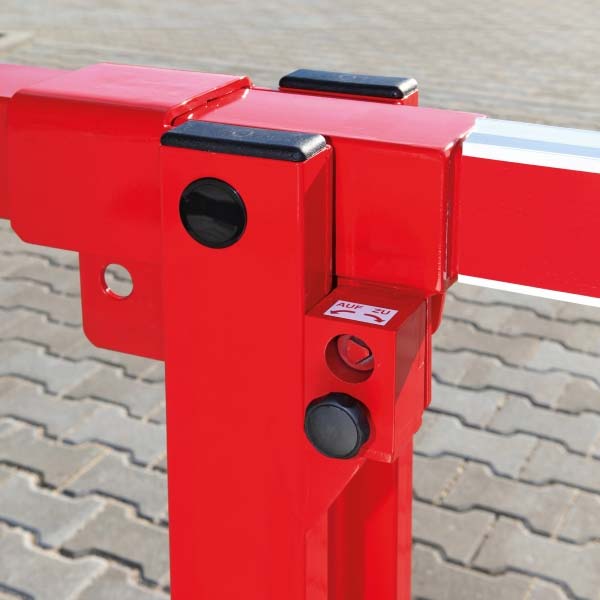

• Locking Method: Automatic
• Lock Style: Cylinder lock.
The re-designed COMPACT System Boom Barrier - Counterweight Style is highly functional yet presents a modern streamlined appearance that will complement any building.
| Support Type | Overall Width | Drive Through Width |
| Pendulum Support Post | 3,000mm | 1,895mm |
| Pendulum Support Post | 3500mm | 2,395mm |
| Pendulum Support Arm | 4000mm | 2,895mm |
| Pendulum Support Arm | 4,500mm | 3,395mm |
| Pendulum Support Arm | 5,000mm | 3,895mm |
| Pendulum Support Arm | 5,500mm | 4,395mm |
| Pendulum Support Arm | 6,000mm | 4,895mm |
| Pendulum Support Arm | 6,500mm | 5,395mm |
| Pendulum Support Arm | 7,000mm | 5,895mm |
| Fixed Support Post | 4,000mm | 2,895mm |
| Fixed Support Post | 4,500mm | 3,395mm |
| Fixed Support Post | 5,000mm | 3,895mm |
| Fixed Support Post | 5,500mm | 4,395mm |
| Fixed Support Post | 6,000mm | 4,895mm |
| Fixed Support Post | 6,500mm | 5,395mm |
| Fixed Support Post | 7,000mm | 5,895mm |
COMPACT Counterweight Boom Barrier
20-30 Working Day / Delivery
Proudly Made in Germany
